ETHOS 8400
8400 Multifunction Installation Tester
Simple to operate - just select and test
Continuity testing from 0.01 - 19.99kΩ with zero function
Insulation resistance testing for 250V, 500V and 1000V up to 200MΩ, 500MΩ , 1000MΩ respectively
High accuracy no-trip loop testing
High current and no-trip loop testing from 0.01Ω to 500Ω
PFC / PSC test
x ½, x 1 and x 5 tests @ 0° and 180° auto and ramp RCD tests
RCD test currents of 30mA, 100mA, 300mA and 500mA
Phase and rotation
Battery saving auto-sleep mode with fast push button restart
Live safety warning indicator providing overall protection
3rd amendment compliant
18th edition compliant
| 3 Phase Rotation | Yes |
| Ac Voltage Measurement | 440V AC |
| Batteries Included | Yes |
| Battery Level Indicator | Yes |
| Battery Size | AA |
| Battery Type | Alkaline |
| Continuity Check | Yes |
| Continuity Range | 0.01 Ω - 19.99 kΩ |
| Depth | 140mm |
| Dimensions | (H)115 mm x (W)245 mm x (D)140 mm |
| Display Type | LCD |
| Guarantee | 3 Years |
| Height | 115mm |
| IP Rating | IP54 |
| Insulation Resistance Measuring Range | 250V 0.001 MΩ - 200.0 MΩ / 500V 0.001 MΩ - 500.0 MΩ / 1000V 0.001 MΩ - 1000 MΩ |
| Insulation Test Voltage | 250V / 500V / 1000V |
| Kit Contents | 1 x 3 Wire Lead Set with Prods and Clips, 1 x Switched Probe, 1 x Mains Plug Test Lead, 1 x AC Battery Charger, 1 x Neck Strap, 1 x Calibration Certificate and 1 x Large Soft Pouch |
| Logistics Partner | NONE |
| Loop Impedance Range | Hi Current 0.000 Ω - 500.0 Ω / No Trip 0.00 Ω - 500.0 Ω |
| Number Of Batteries | 6 |
| Packaging Types | Each |
| Product Range | Multifunction Testers |
| Punchout | No |
| Rcd Settings | ½ / x1 / x5 @ 0° and 180° / Auto and Ramp Tests |
| Rcd Test Range | 30 mA / 100 mA / 300 mA / 500 mA |
| Safety Range | CAT III 600V, CAT IV 300V |
| Similar Stock | No |
| Similar Stock Code | 001-MFTZ-ZZZZZ-ZZZ |
| Standards | IEC 61010, IEC 61557, EMC IEC 61326 |

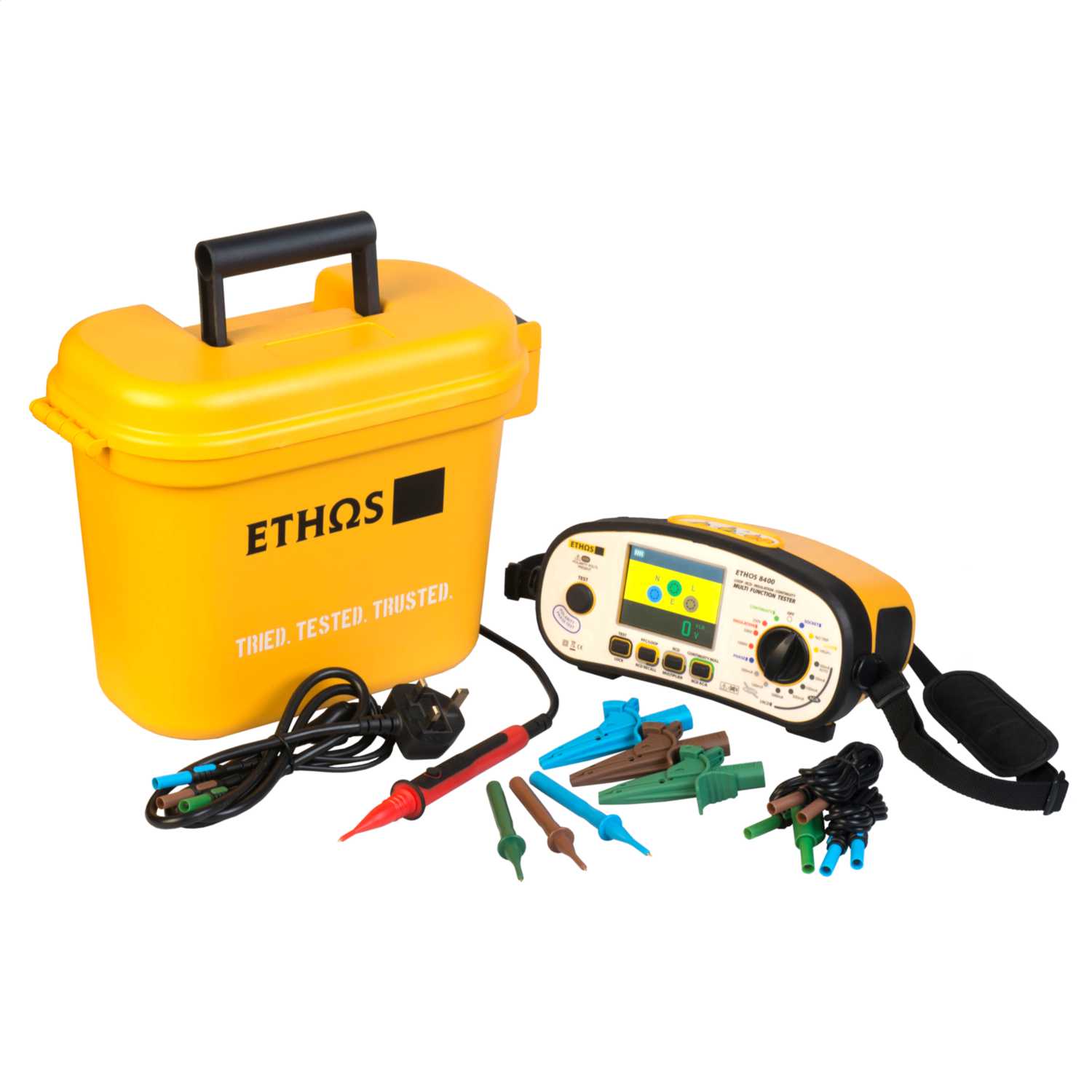

| Supplied With | 1 x 3 Wire Lead Set with Probes and Croc Clips 1 x Switched Probe 1 x Mains Plug Test Lead 1 x Calibration Certificate 6 x AA Batteries 1 x Heavy-Duty Carry Case |
| Type | Multifunction Installation Tester |
| Unspsc V13 | 41113681 |
| Unspsc V18 | 41113681 |
| Unspsc V22 | 41113681 |
| Unspsc V24 | 41113681 |
| Weight | 1.5kg |
| Width | 245mm |
